Toy Batch SLAM Example¶
In this example, we’ll consider a similar example to the one in the toy problems notebook, but this time, we’ll consider it in a batch estimation framework. To increase the complexity of the problem, we will also assume that the landmark positions are unknown, and will be part of the state for estimation. Our goal will be to estimate the robot’s trajectory and the landmark positions using all of the measurements collected. The state to estimate is given by
where similarly to in the previous example \(\mathbf{T}_k \in SE(2)\) denotes the pose of the robot at time \(k\), written as
Additionally, \(\mathbf{p}_a^i \in \mathbb{R}^2\) denotes the position of the \(i\)’th landmark in the inertial frame. Similarly to the previous example, the robot collects wheel odometry measurements, which are used as the input to the process model given by
In this example, the robot will also collects direct measurements of the landmark position, resolved in the body frame of the robot. The measurement model is now a function of one robot pose and one landmark state, such that the measurement of the \(j\)’th landmark at time \(k\) is given by
where \(\mathbf{v}_{jk} \sim \mathcal{N} \left( \mathbf{0}, \mathbf{R}_{jk} \right)\) is white noise. Notice that unlike the previous example, each measurement is a function of two states. To define the measurement model, the CompositeState class can be leveraged. First, we’ll start by defining some parameters that we’ll need for the rest of the example, and then we’ll implement the measurement model.
[1]:
import navlie as nav
import numpy as np
import typing
from pymlg import SO3
### Parameters used for the example
# if true, the information matrix in the batch problem will be inverted to compute the covariance
compute_covariance = True
# If false, will run without noise, and all states initialized to groundtruth
noise = True
# String keys to identify the states
pose_key_str = "x"
landmark_key_str = "l"
# The end time of the simulation
t_end = 20.0
### Defining the measurement model
class PointRelativePositionSLAM(nav.types.MeasurementModel):
def __init__(self, pose_state_id: typing.Any, landmark_state_id: typing.Any, R: np.ndarray):
self.pose_state_id = pose_state_id
self.landmark_state_id = landmark_state_id
self._R = R
def evaluate(self, x: nav.CompositeState):
pose: nav.lib.SE2State = x.get_state_by_id(self.pose_state_id)
landmark: nav.lib.VectorState = x.get_state_by_id(self.landmark_state_id)
r_a = pose.position.reshape((-1, 1))
p_a = landmark.value.reshape((-1, 1))
C_ab = pose.attitude
return C_ab.T @ (p_a - r_a)
def jacobians(self, x: nav.CompositeState):
pose: nav.lib.SE2State = x.get_state_by_id(self._pose_state_id)
landmark: nav.lib.VectorState = x.get_state_by_id(self._landmark_state_id)
r_zw_a = pose.position.reshape((-1, 1))
C_ab = pose.attitude
r_pw_a = landmark.value.reshape((-1, 1))
y = C_ab.T @ (r_pw_a - r_zw_a)
# Compute Jacobian of measurement model with respect to the state
if pose.direction == "right":
pose_jacobian = pose.jacobian_from_blocks(
attitude=-SO3.odot(y), position=-np.identity(r_zw_a.shape[0])
)
elif pose.direction == "left":
pose_jacobian = pose.jacobian_from_blocks(
attitude=-C_ab.T @ SO3.odot(r_pw_a), position=-C_ab.T
)
# Compute jacobian of measurement model with respect to the landmark
landmark_jacobian = pose.attitude.T
# Build full Jacobian
state_ids = [state.state_id for state in x.value]
jac_dict = {}
jac_dict[state_ids[0]] = pose_jacobian
jac_dict[state_ids[1]] = landmark_jacobian
return x.jacobian_from_blocks(jac_dict)
def covariance(self, x: nav.CompositeState):
return self._R
Evaluating The Measurement Model¶
To evaluate this measurement model, we just need to create a CompositeState that contains the robot state and the landmark state, as done below.
[2]:
pose = nav.lib.SE2State(np.array([0.1, 1.0, 2.0]), state_id=pose_key_str)
landmark = nav.lib.VectorState(np.array([1.0, 2.0]), state_id=landmark_key_str)
R = np.identity(2) * 0.01
# Create the measurement model
model = PointRelativePositionSLAM(pose_key_str, landmark_key_str, R)
# Create a composite state
state = nav.lib.CompositeState([pose, landmark])
# Evaluate the model
y = model.evaluate(state)
print(y)
[[ 0.09642014]
[-0.05653507]]
Creating the simulated data¶
Next, we’ll create the simulated data for this example. To use the data generator included in navlie, it is convenient to define the same relative position measurement model, but where the landmarks are included in the state vector. We’ll start by defining some landmarks and creating the relative position measurement model with known landmarks. Then, we’ll create the process model using the BodyFrameVelocity process model defined in navlie.
[3]:
class PointRelativePosition(nav.types.MeasurementModel):
def __init__(self, landmark_position: np.ndarray, landmark_id: int, R: np.ndarray):
self.landmark_position = landmark_position.reshape((-1, 1))
self.landmark_id = landmark_id
self._R = R
def evaluate(self, x: nav.lib.SE2State):
r_a = x.position.reshape((-1, 1))
p_a = self.landmark_position
C_ab = x.attitude
return C_ab.T @ (p_a - r_a)
def covariance(self, x: nav.CompositeState):
return self._R
# Now, create some landmarks arranged in a circle and create a list of
# measurement models, one for each landmark
landmark_positions = [np.array([3.0 * np.cos(theta), 3.0 * np.sin(theta)]) for theta in np.linspace(0, 2*np.pi, 10)]
landmarks = [nav.lib.VectorState(landmark, state_id=f"{landmark_key_str}{i}") for i, landmark in enumerate(landmark_positions)]
R = np.identity(2) * 0.1
meas_models = [PointRelativePosition(l.value, l.state_id, R) for l in landmarks]
# Create the process model
Q = np.identity(3) * 0.4
process_model = nav.lib.BodyFrameVelocity(Q)
# Input profile
input_profile = lambda t, x: np.array(
[np.cos(0.1 * t), 1.0, 0]
)
# Generate the data
x0 = nav.lib.SE2State(np.array([0, 0, 0]))
dg = nav.DataGenerator(
process_model,
input_profile,
Q,
input_freq=100,
meas_model_list=meas_models,
meas_freq_list=[10] * len(meas_models),
)
gt_poses, input_list, meas_list = dg.generate(x0, start=0.0, stop=t_end, noise=noise)

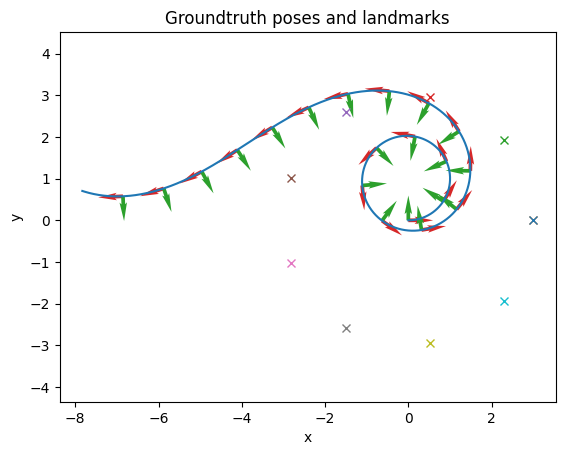

# Plot the true state
import matplotlib.pyplot as plt
fig, ax = nav.plot_poses(gt_poses, step=100)
for landmark in landmarks:
ax.plot(landmark.value[0], landmark.value[1], 'x')
ax.set_title("Groundtruth poses and landmarks")
ax.set_xlabel("x")
ax.set_ylabel("y")
plt.show()
Batch Estimation: From Weighted Nonlinear Least Squares to Unweighted Nonlinear Least Squares¶
Now, we wish to estimate the full state of the system using all of the inputs and all of the measaurements. To do this, we want to define a nonlinear least squares problem of the form
where \(N\) is the number of error terms in the problem, and each \(\mathbf{e}_i (\mathcal{X})\) is an error term that is function of the state. Additionally, \(\mathbf{W}_i\) is a weight matrix, generally the inverse covariance of the error. navlie has a nonlinear least squares solver Problem that can be used to solve general nonlinear least squares problems. However, the solver can only handle unweighted nonlinear least squares problems of the form
Thankfully, converting the weighted nonlinear least squares problem to an equivalent unweighted problem is possible. Consider the Cholesky factorization of \(\mathbf{W}\), given by
Defining \(\tilde{\mathbf{e}_i} = \mathbf{L}_i \mathbf{e}_i\), we can rewrite the original weighted cost function as
Thus, for each error term in the problem, the user must pay careful attention to weight the error by the square root of the inverse covariance matrix of that particular error term.
Now that we’ve seen how to convert the original weighted nonlinear least squares problem into a nonweighted one, let’s explore how to define nonlinear least squares problems in navlie.
Defining Nonlinear Least Squares Problems in navlie¶
The Problem class in navlie is used to define and then solve nonlinear least squares problems of the form
where each error term is a function of a subset of the full state, written \(\mathcal{X}_s\), where \(\mathcal{X}_s \subset \mathcal{X}\). In navlie each \(\mathbf{e}_i\) is called a Residual (similarly to Ceres), and each state in the problem is called a Variable. In many problems, residuals correspond to one of three types:
A prior residual of the form
\[\mathbf{e} \left(\mathcal{X}_k \right) = \mathcal{X}_k \ominus \tilde{\mathcal{X}}_k,\]where \(\tilde{\mathcal{X}}_k\) is a prior estimate of the state at time \(k\).
A process residual, defining an error using the process model for the state written
\[\mathbf{e} \left(\mathcal{X}_{k-1}, \mathcal{X}_k \right) = \mathcal{X}_k \ominus f \left(\mathcal{X}_{k-1}, \mathbf{u}_{k-1} \right),\]where \(\ominus\) represents a general minus operator for the group, and \(f (\mathcal{X}_{k-1}, \mathbf{u}_{k-1})\) is the process model.
A measurement residual of the form
\[\mathbf{e} \left(\mathcal{X}_s \right) = \mathbf{y} - \mathbf{g} \left(\mathcal{X}_s \right),\]where \(\mathbf{y}\) is a measurement, \(\mathbf{g}\) is the measurement model, and \(\mathcal{X}_s\) is the subset of the state that the measurement model is a function of. Note that these are all unweighted forms of the residual.
To define a Residual, a user must inherit from the Residual base class defined in Residual. Each Residual The user must then implement the evaluate() method, which computes the residual and the Jacobians of the residual with respect to each state that the residual is a function of. The Residual class must also contain the unique keys of each variable involved in the residual.
In the toy batch SLAM example, we will define a prior residual on the first pose, process residuals that connect consecutive robot states through the process model, and measurement residuals that connect the robot states to the landmark states. The next section will show how these can be defined in navlie.
[4]:
## Defining the residuals
from navlie.batch.residuals import Residual
# Define the prior residual, used to place a prior on the first state
class PriorResidual(Residual):
def __init__(self,
keys: typing.List[typing.Hashable],
prior_state: nav.lib.SE2State,
prior_covariance: np.ndarray):
super().__init__(keys)
self._cov = prior_covariance
self._x0 = prior_state
# Precompute squarae-root of the inverse covariance
self._L = np.linalg.cholesky(np.linalg.inv(self._cov))
def evaluate(self,
states: typing.List[nav.types.State],
compute_jacobians: typing.List[bool] = None):
# Extract the SE2State from the list
# The list should only be of length one since only one state is involved
# in this residual
x = states[0]
error = x.minus(self._x0)
# Weight the error by the square root of the information matrix
error = self._L.T @ error
# Compute Jacobian of error w.r.t x
if compute_jacobians:
# jacobians should be a list with length equal to the number of
# states involved in this residual (in this case 1)
jacobians = [None]
if compute_jacobians[0]:
jacobians[0] = self._L.T @ x.minus_jacobian(self._x0)
return error, jacobians
return error
# Define the process residual, which links two consecutive robot states
class ProcessResidual(Residual):
"""
A generic process residual.
Can be used with any :class:`navlie.types.ProcessModel`.
"""
def __init__(
self,
keys: typing.List[typing.Hashable],
process_model: nav.lib.BodyFrameVelocity,
u: nav.Input,
):
super().__init__(keys)
self._process_model = process_model
self._u = u
def evaluate(
self,
states: typing.List[nav.types.State],
compute_jacobians: typing.List[bool] = None,
) -> typing.Tuple[np.ndarray, typing.List[np.ndarray]]:
# Extract the states at times k-1 and k
# The list should be of length 2, since there are two states
# involved in this residual
x_km1 = states[0]
x_k = states[1]
# Compute the timestamp from the states
dt = x_k.stamp - x_km1.stamp
# Evaluate the process model, compute the error
x_k_hat = self._process_model.evaluate(x_km1.copy(), self._u, dt)
# Compute the error, the difference between the state predicted from the
# process model and the actual state at time k
e = x_k.minus(x_k_hat)
# Scale the error by the square root of the info matrix
L = self._process_model.sqrt_information(x_km1, self._u, dt)
e = L.T @ e
# Compute the Jacobians of the residual w.r.t x_km1 and x_k
if compute_jacobians:
# jac_list should be a list of length two, where the first element
# is the jacobian of the residual w.r.t x_km1 and the second element
# is the Jacobian of the residual w.r.t x_k
jac_list = [None] * len(states)
if compute_jacobians[0]:
jac_list[0] = -L.T @ self._process_model.jacobian(
x_km1, self._u, dt
)
if compute_jacobians[1]:
jac_list[1] = L.T @ x_k.minus_jacobian(x_k_hat)
return e, jac_list
return e
# Define the measurement residual, which links a robot state to a landmark
class PointRelativePositionResidual(Residual):
def __init__(
self,
keys: typing.List[typing.Hashable],
meas: nav.types.Measurement,
):
super().__init__(keys)
# Store the measurement, where the measurement contains the model
self.meas = meas
# Evaluate the square root information a single time since it does not
# depend on the state in this case
self.sqrt_information = self.meas.model.sqrt_information([])
def evaluate(
self,
states: typing.List[nav.types.State],
compute_jacobians: typing.List[bool] = None,
) -> typing.Tuple[np.ndarray, typing.List[np.ndarray]]:
# In this case, states is a list of length two, where the first element
# should be the robot state and the second element should be the
# landmark state.
# To evaluate the measurement model that we previously defined,
# we need to create a composite state from the list of states
eval_state = nav.CompositeState(states)
# Evaluate the measurement model
y_check = self.meas.model.evaluate(eval_state)
# Compute the residual as the difference between the actual measurement
error = self.meas.value - y_check
L = self.sqrt_information
error = L.T @ error
if compute_jacobians:
# Jacobians should be a list of length equal to the number of states
jacobians = [None] * len(states)
# The Jacobian of the residual is the negative of the measurement
# model Jacobian
full_jac = -self.meas.model.jacobian(eval_state)
# The first 3 columns of the Jacobian are the Jacobian w.r.t the
# robot state, and the last 2 columns are the Jacobian w.r.t the
# landmark state
if compute_jacobians[0]:
jacobians[0] = L.T @ full_jac[:, :3]
if compute_jacobians[1]:
jacobians[1] = L.T @ full_jac[:, 3:]
return error, jacobians
return error
Generating the Initial Estimate¶
Now that we’ve defined the residuals that will be used in the problem, we can now create the problem, and add all of our variables and residuals to the problem. We will first need an initial estimate for the states, where here, the initial estimate for the robot trajectory is generated via dead-reckoning of the noisy odometry measurements. The initial estimate for the landmarks in this example will be generated by simply perturbing the groundtruth landmark positions, but in practice, landmarks can be initialized by inverting the measurement model.
[5]:

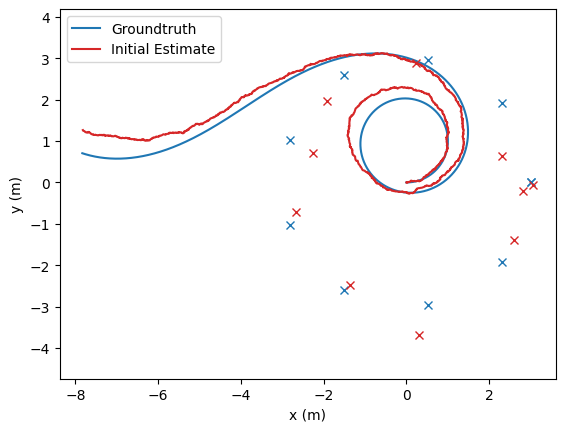

# Dead-reckon initial state forward using the noisy measurements
x0_hat = gt_poses[0].copy()
x0_hat.state_id = pose_key_str + "0"
init_pose_est = [x0_hat]
x = x0_hat.copy()
for k in range(len(input_list) -1):
u = input_list[k]
dt = input_list[k + 1].stamp - u.stamp
x = process_model.evaluate(x, u, dt)
x.stamp = x.stamp + dt
x.state_id = pose_key_str + str(k + 1)
x.direction = "left"
init_pose_est.append(x.copy())
# Generate estimates of landmarks by perturbing the groundtruth landmarks
init_landmark_est = []
for i, landmark in enumerate(landmarks):
if noise:
sigma_init = 0.4
else:
sigma_init = 0.0
perturbed_landmark = nav.lib.VectorState(landmark.value + np.random.randn(2) * sigma_init, state_id=landmark.state_id)
init_landmark_est.append(perturbed_landmark)
# Plot the initial estimate compared to the groundtruth
fig, ax = nav.plot_poses(gt_poses, step=None, line_color='tab:blue', label="Groundtruth")
nav.plot_poses(init_pose_est, step=None, ax=ax, line_color='tab:red', label="Initial Estimate")
# Plot the true and the estimated landmarks
for landmark in landmarks:
ax.plot(landmark.value[0], landmark.value[1], 'tab:blue', marker='x')
for landmark in init_landmark_est:
ax.plot(landmark.value[0], landmark.value[1], 'tab:red', marker='x')
ax.legend()
ax.set_xlabel("x (m)")
ax.set_ylabel("y (m)")
[5]:
Text(0, 0.5, 'y (m)')
Now that we’ve generated our initial estimate, we can create the nonlinear least squares problem and add our initial variable estimates to the problem. Each variable that we’d like to optimize needs to have an associated key that is unique to that variable - in this example, robot poses will have the keys x0, x1, x2, etc., and landmarks will have the keys l0, l1, l2, etc.
[6]:
from navlie.batch.problem import Problem
# Create a problem with default settings
problem = Problem()
# Add poses and landmarks to the problem
for i, state in enumerate(init_pose_est):
problem.add_variable(state.state_id, state)
for i, landmark in enumerate(init_landmark_est):
problem.add_variable(landmark.state_id, landmark)
# Now, lets print the keys of the variables that are in the problem!
init_keys_list = list(problem.variables_init.keys())
print("First 10 keys: ")
print(init_keys_list[1:10])
print("Last 10 keys:")
print(init_keys_list[-10:])
First 10 keys:
['x1', 'x2', 'x3', 'x4', 'x5', 'x6', 'x7', 'x8', 'x9']
Last 10 keys:
['l0', 'l1', 'l2', 'l3', 'l4', 'l5', 'l6', 'l7', 'l8', 'l9']
We can see that we’ve added all the poses to the problem, followed by all the landmarks. Next, let’s add in the error terms to the problem - one prior residual on the first pose, process residuals connecting consecutive poses, and measurement residuals connecting each pose and each landmark.
[7]:
# Get the estimated pose timestamps (we'll need this for later)
est_stamps = [state.stamp for state in init_pose_est]
init_cov = np.identity(3) * 1e-7 # set a small covariance since we've initialized to groundtruth
x0_hat = init_pose_est[0].copy()
prior_residual = PriorResidual(x0_hat.state_id, x0_hat.copy(), init_cov)
problem.add_residual(prior_residual)
# Add process residuals
for k in range(len(input_list) - 1):
u = input_list[k]
key_1 = f"{pose_key_str}{k}"
key_2 = f"{pose_key_str}{k+1}"
process_residual = ProcessResidual(
[key_1, key_2],
process_model,
u,
)
problem.add_residual(process_residual)
from navlie.utils import find_nearest_stamp_idx
# Before adding in the measurements to the problem, we need to replace the
# measurement model on the measurements with the measurement model with unknown
# landmark position
for k, meas in enumerate(meas_list):
# Get the pose key
pose_idx = find_nearest_stamp_idx(est_stamps, meas.stamp)
# Get state at this id
pose = init_pose_est[pose_idx]
landmark_state_id = meas.model.landmark_id
meas.model = PointRelativePositionSLAM(pose.state_id, landmark_state_id, R)
key_1 = pose.state_id
key_2 = landmark_state_id
meas_residual = PointRelativePositionResidual(
[key_1, key_2],
meas,
)
problem.add_residual(meas_residual)
Run Batch!¶
Now that all the variables and residuals have been added to the problem, we can run our solver on the problem! Calling problem.solve() will return a dictionary containing the optimized state and a summary of the optimization. The problem will output the cost at each iteration, as well as the step sizes taken, the change in cost dC, and the norm of the gradient.
[8]:
# Solve the problem
opt_results = problem.solve()
variables_opt = opt_results["variables"]
print(opt_results["summary"])
Initial cost: 10209.908382510479
Iter: 0 || Cost: 2.1187e+03 || Step size: 1.8430e+01 || dC: 8.0913e+03 || dC/C: 3.8191e+00 || |grad|_inf: 2.5900e+02
Iter: 1 || Cost: 1.9963e+03 || Step size: 2.1161e+00 || dC: 1.2235e+02 || dC/C: 6.1290e-02 || |grad|_inf: 8.5779e+00
Iter: 2 || Cost: 1.9963e+03 || Step size: 5.0496e-02 || dC: 4.0240e-02 || dC/C: 2.0158e-05 || |grad|_inf: 3.1471e-01
Iter: 3 || Cost: 1.9963e+03 || Step size: 4.9900e-03 || dC: 1.9980e-04 || dC/C: 1.0009e-07 || |grad|_inf: 4.1650e-02
Iter: 4 || Cost: 1.9963e+03 || Step size: 2.6577e-04 || dC: 1.5637e-05 || dC/C: 7.8333e-09 || |grad|_inf: 2.0333e-03
Iter: 5 || Cost: 1.9963e+03 || Step size: 1.1292e-05 || dC: 3.4423e-07 || dC/C: 1.7244e-10 || |grad|_inf: 1.7811e-04
Iter: 6 || Cost: 1.9963e+03 || Step size: 1.7510e-06 || dC: 1.0526e-07 || dC/C: 5.2728e-11 || |grad|_inf: 1.3721e-05
Iter: 7 || Cost: 1.9963e+03 || Step size: 1.0217e-07 || dC: 6.7209e-09 || dC/C: 3.3668e-12 || |grad|_inf: 1.5173e-06
Iter: 8 || Cost: 1.9963e+03 || Step size: 4.5874e-08 || dC: 1.3465e-09 || dC/C: 6.7452e-13 || |grad|_inf: 3.0893e-07
Number of states optimized: 6017.
Number of error terms: 9997.
Initial cost: 10209.908382510479.
Final cost: 1996.258310853446.
Total time: 40.7240629196167
Extracting the Estimates and the Covariances¶
To extract the covariance, we can use thee problem.get_covariance_block() method, which will extract the marginal covariance of a particular variable based on the state ID of that variable. Note that this is useful for visualizing three sigma bounds and individual NEES values for subsets of the state, but sometimes it is also useful to compute the NEES for the entire trajectory. The problem class also outputs the full information matrix of the problem, and the user can choose to manipulate
this themselves after the optimization has completed.
[9]:
# Extract estimates
poses_results_list: typing.List[nav.types.StateWithCovariance] = []
for pose in init_pose_est:
state = variables_opt[pose.state_id]
if compute_covariance:
# Extract the covariance for only this current pose state
cov = problem.get_covariance_block(pose.state_id, pose.state_id)
else:
cov = np.identity(3)
poses_results_list.append(nav.types.StateWithCovariance(state, cov))
landmarks_results_list: typing.List[nav.types.StateWithCovariance] = []
for landmark in init_landmark_est:
state = variables_opt[landmark.state_id]
if compute_covariance:
cov = problem.get_covariance_block(landmark.state_id, landmark.state_id)
else:
cov = np.identity(2)
landmarks_results_list.append(nav.types.StateWithCovariance(state, cov))
# Postprocess the results and plot
gaussian_result_list = nav.GaussianResultList(
[nav.GaussianResult(poses_results_list[i], gt_poses[i]) for i in range(len(poses_results_list))],
)

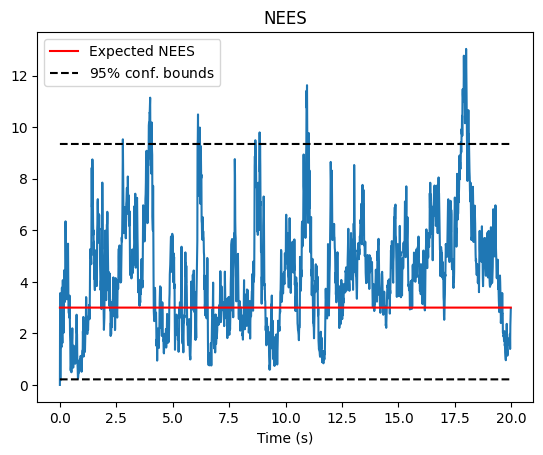

# Plot NEES
fig, axs = nav.plot_nees(gaussian_result_list)
axs.set_xlabel("Time (s)")
axs.set_title("NEES")

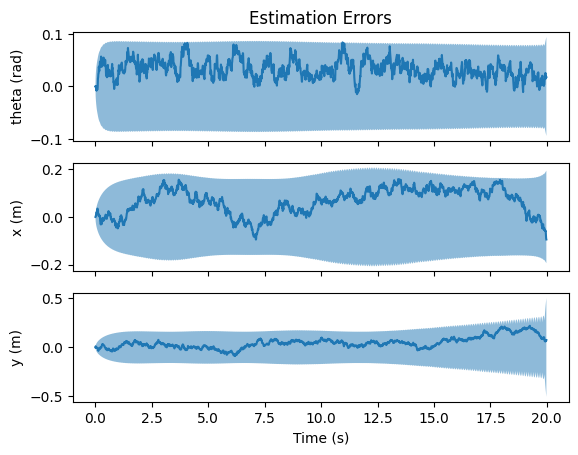

fig, axs = nav.plot_error(gaussian_result_list)
axs[0].set_title("Estimation Errors")
axs[0].set_ylabel("theta (rad)")
axs[1].set_ylabel("x (m)")
axs[2].set_ylabel("y (m)")
axs[2].set_xlabel("Time (s)")
plt.show()

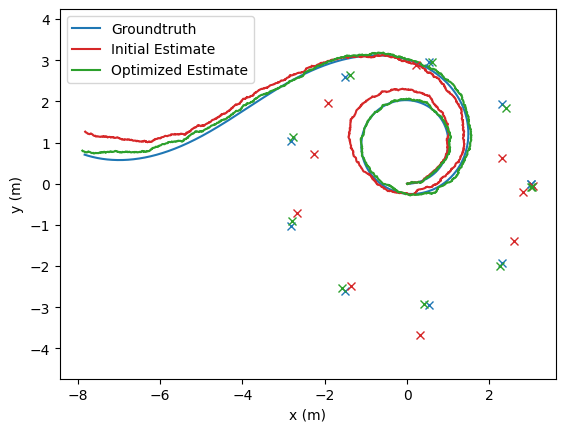

# Plot the initial estimate, optimized estimates, and groundtruth
opt_poses: typing.List[nav.lib.SE2State] = [state.state for state in poses_results_list]
fig, ax = nav.plot_poses(gt_poses, step = None, line_color='tab:blue', label="Groundtruth")
fig, ax = nav.plot_poses(init_pose_est, step=None, ax=ax, line_color='tab:red', label="Initial Estimate")
fig, ax = nav.plot_poses(opt_poses, step=None, ax=ax, line_color='tab:green', label="Optimized Estimate")
opt_landmarks: typing.List[nav.lib.VectorState] = [state.state for state in landmarks_results_list]
for landmark in landmarks:
ax.plot(landmark.value[0], landmark.value[1], 'tab:blue', marker='x')
for landmark in init_landmark_est:
ax.plot(landmark.value[0], landmark.value[1], 'tab:red', marker='x')
for landmark in opt_landmarks:
ax.plot(landmark.value[0], landmark.value[1], 'tab:green', marker='x')
ax.set_xlabel("x (m)")
ax.set_ylabel("y (m)")
ax.legend()

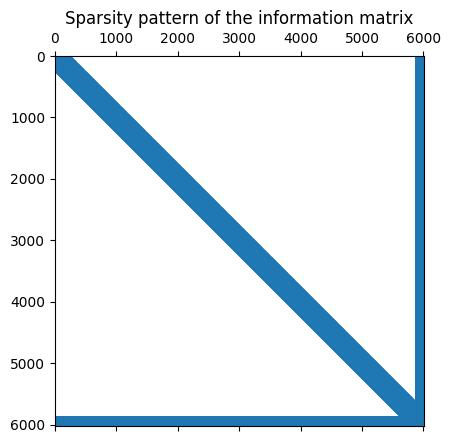

# Visualize the sparsity pattern of the information matrix
fig, ax = plt.subplots()
ax.set_title("Sparsity pattern of the information matrix")
ax.spy(opt_results["info_matrix"])
plt.show()
